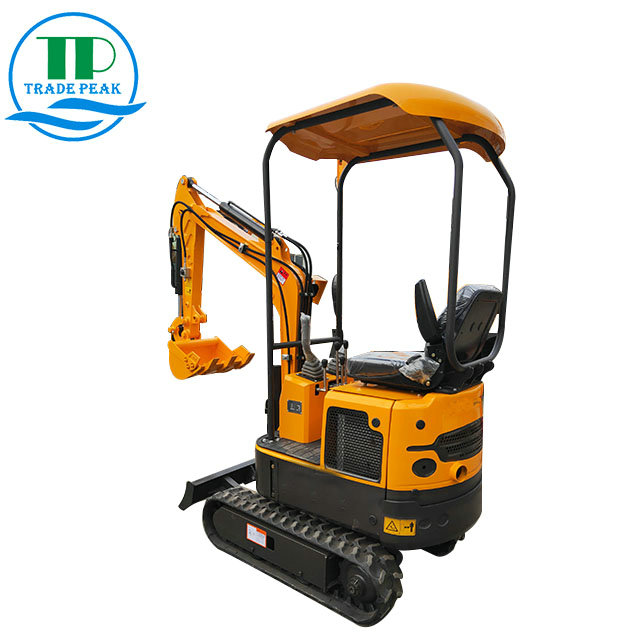

Mini Excavator QTP12
$7,000.00
- Rubber track contains steel wire for more wear resistance
- Hydraulic pump excellent hydraulic system stable operation and has high working pressure
- Thermal dissipation device effectively prolongs working time and engine life
- Sight oil glass design for easy observation of oil quantity
- TRADE PEAK mini excavator is designed for small works,in garden,farmland,municipal works,digging trench.It is with small engine, simple design, easy to maintain
Brand TRADE PEAK
Model QTP12
Operating Weight 1100kg
Digging bucket capacity 0.025cbm/120kg
Digging bucket width 350 mm, can add narrow bucket is 200 mm
Engine YANMAR(3TNV70)
Rated power 10KW
Displacement 0.211L
Main pump SAISIDA
Valve BEIFANG
Displacement 6,8m/r
Swing motor SJ-TECH(MP-1-160)
Traveling motor KERSEN (OMS-2450)
Overall dimension(L×W×H) 2770x896x1490 mm
Wheelbase 910 mm
Total length of track on land 1230 mm
Platform ground clearance 380 mm
Platform back turning radius 784 mm
Chassis width 896 mm
Track width 130 mm
Chassis ground clearance 132 mm
Track height 320 mm
Max. Digging depth 1650 mm
Max. Vertical digging depth 1375 mm
Max. Digging height 2610 mm
Max. Dumping height 1850 mm
Max. Digging radius on ground 2850 mm
Min. Rotation radius 1330 mm
Max. Upgrade height of bulldozer blade 345 mm
Max. Digging depth of bulldozer blade 255 mm
